GEOMETRIC DESIGN OF HIGHWAY TUTORIAL

ƒ

Installation Instruction.

ƒ

Open Project.

ƒ

Surface Modeling.

ƒ

Horizontal Alignment.

ƒ

Vertical Alignment.

ƒ

Cross Section.

ƒ

Run Design.

ƒ

Generate Reports and Output of Graphics.

ƒ

Compatibility of Programs:

ƒ

Eagle point is a sort of an Add-ons software of AutoCAD.

ƒ

Select Eagle point version in accordance with the use of AutoCAD. The selected version of Eagle point should be compatible with AutoCAD version.

ƒ

In this tutorial AutoCAD 2004 and Eagle point 2009 are used.

ƒ ƒ

Goto Eagle Point’s software folder. Open “Setup.exe” a window will appear.

ƒ

Click on “Install Local License (Single seat).

ƒ ƒ

Click “Next” Select AutoCAD version and it’s location or path.

ƒ ƒ

Click “Next” Completing the Installation and click “Finish”

Open Eagle point (from Desktop shortcut or specified directory.

ƒ

To insert the AutoCAD drawing click “Create New Project” button as shown.

ƒ

Select “Eagle Point Project” Click “Next” => a new window appear shown below.

ƒ

Project Description: To make new project write project file name in this text field. Or open the existing file click open box button and select the file from computer.

ƒ Project

Drawing:

To make new project you have to give path or Select AutoCAD drawing in this text field.

ƒ Project

settings:

Choose required Units from here.

ƒ

Click on Finish button

ƒ

Select Drawing and Click “OK”

¾ Now your Drawing is attached with open automatically in AutoCAD.

Eagle point and will be

‰ Triangulate

the contours.

‰

It will be use in making Vertical profile of Geometric Design.

‰

It will be use in extracting of cross section data.

ƒ

Draw a boundary from poly line command around terrain.

ƒ

Shut off all the layers except layers of contours & boundary.

ƒ

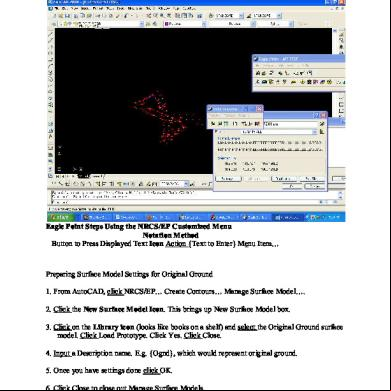

Now in Eagle Point. Go to “Product” menu & select “Surface Modeling”.

ƒ

A new window of surface modeling will be appear.

ƒ

Now go to “prepare” menu => select “Manage Surface Model” => click “New Surface Model”

ƒ

New window will appear, in this window you have to give description of surface modeling according to your requirements or use default configurations.

ƒ

Click “OK” & Close “Manage surface model” windows.

ƒ

The picture shown in next slide.

ƒ

Now go to “Triangulate” menu => Select “Surface Model from Contours”.

ƒ

Select “Surface Model” as previously define.

ƒ

In “Boundary” drop box select “Select”

ƒ

Apply all checks which is required as shown in picture.

ƒ

Note: check if required “ External Point File(s) “.

ƒ

Click on “Apply” button.

ƒ

After clicking “Apply” button, the AutoCAD window will automatically maximize.

ƒ

1st select the all contours line carefully ( not boundary line included), & Press Enter.

ƒ

2nd select the boundary line and press Enter.

ƒ

The following windows will appear which shown.

ƒ

Click “OK” to continue the process.

ƒ

As the process is being done the Surface Modeling or Triangulation will be appear in the AutoCAD drawing.

ƒ

Close “Triangulate Surface Model from contours” and “Surface Modeling” windows.

ƒ

Before going to next step, turn off Triangulation (TIN) & Boundary layer and Turn On the layer of Contours text.

‰

Locate feasible path of ROW.

‰

RoadCalc

‰Design ‰

Horizontal line, curves/spirals.

Right of Way

ƒ ƒ

In AutoCAD drawing select poly line and draw a line which shows the centerline of road, from beginning to end. While drawing a path carefully study the contours and select most feasible path which give minimum horizontal or vertical curves or cuts & fills.

Center line

ƒ

Now Goto “File” menu => New => Select “RoadCalc New project” click “Next”.

ƒ

Give description and click “Next” then click “Finish”.

ƒ ƒ

A new window will appear to open RoadCalc . Select Roadcalc and click “OK”

ƒ ƒ

A window of RoadCalc appear Goto “Alignment” menu => select “Convert Objects to Alignment”

ƒ

Select the center line and press Enter then select the beginning point of center line

ƒ ƒ ƒ

A new window will be appear Select “Alignment” as “Center line” & click “Apply” button. Center line will be align as shown (in red).

ƒ ƒ ƒ

Goto “Alignment” menu=> select “Edit Data” A new window appear shows the stations of PI of center line. Click on “curve data”.

ƒ ƒ

A new window shows the Horizontal Curve Data such as Radius, Tangent, Length etc. Click “Horizontal Speed Tables”.

ƒ ƒ

Horizontal speed Tables provides option to create horizontal curves according to AASHTO guidelines. It also provides different speeds and according to that it gives the Radius of the curve and other parameters including Superelevation data.

ƒ

Select Design or required speed, radius and other parameter as per requirement and click “Create Curve” button.

ƒ ƒ

Select all PI’s point and click “OK”. Close horizontal speed tables.

ƒ ƒ

The Horizontal Curve data may shows the overlapping of curves, super elevation etc. Remove overlapping errors by adjustment the parameters of curves such as Radius, length of curve etc or super elevation data.

ƒ ƒ

This is a trial and hit process to eliminate errors, it may change the parameter or speed. Close all windows except “RoadCalc”.

ƒ

Now horizontal curves has been established.

ƒ ƒ

ƒ

To design ROW goto “Alignment” menu => select “Offset”. In Offset Alignment, select “Centerline” as Alignment to Offset. Then give the Offset distance, it will be half of you ROW (for 3.6 m ROW offset will be 1.8) and click “Apply” A offset object is appear, it may ROW Right.

ƒ

ƒ

Again goto Offset Alignment, select “Centerline” as Alignment to Offset. Then give the Offset distance, it will be -ve half of you ROW (for 3.6 m ROW offset will be -1.8) and click “Apply” A offset object is appear, it is ROW Left.

ƒ ƒ

Close Offset Alignment window The ROW and center line will be appear as shown.

ƒ

Now goto “Alignment” => select Convert Objects to Alignment=> select object (ROW Left from AutoCAD)=>pick beginning point.

ƒ ƒ ƒ

A new window of Convert Objects to Alignment will appear. Select “ROW Left” as alignment then click “Apply”. Do same process for ROW Right.

ƒ ƒ

After completing this process, the ROWs will be appear in Aqua blue color. The Horizontal alignment is completed with this step.

‰

Extract profile.

‰ Vertical

Profile

‰ Vertical

Curve

ƒ

Goto RoadCalc => “Profile” menu=> select “Extract profile from surface model”.

ƒ

Select profile Name as “Centerline”

ƒ

Select “Surface Model as “Surface1” ( as descript in surface modeling).

ƒ

Click “OK”

ƒ

Now AutoCAD drawing will be appear Select Centerline of Road. And wait for processing

ƒ

After completing the process the profile will show like shown in picture. (Note: if profile don’t appear, use command of Zoom-Extent in AutoCAD i.e. ‘z’ Enter ‘e’ Enter.

ƒ

To draw vertical alignment select polyline and draw on profile in such manner that it will give minimum vertical curves and cuts & fills or as per requirement.

ƒ

Now again goto profile and select “Convert Object to Profile” and then select the polyline which were drawn in previous step. Press Enter then Click “Next”.

ƒ ƒ

Select profile as “Centerline” then click “Finish” Now vertical profile appear in red color as shown.

ƒ ƒ ƒ

Goto “Profile” menu => select “Edit Data”. The profile data such as PVI or VPI points, Stations, elevations, Grade etc. are available in this window. Click on “Curve Data”.

ƒ ƒ

Vertical curve data will be appear. Click “Vertical Speed Tables” Vertical Speed Tables provides speeds and other data of Vertical curves according to AASHTO guidelines.

ƒ ƒ

Select Design speed and click on “Create Vertical Curve”. Select all VPI’s points and click “OK”

ƒ ƒ

Close Vertical Speed Tables. Adjust Vertical profile curves like done it on Horizontal curves (if required).

ƒ ƒ ƒ

Close all windows except RoadCalc. Now Vertical Profile will be appear. This the completion of Vertical Alignment.

‰

Extract Cross Section

‰ Typical

Cross Section

ƒ ƒ ƒ

Goto “Cross section” menu= > select “Manage Surface”. Goto “Design” tab=> click “New Surface”. Give name of surfaces and type “Normal”.

ƒ

Create following surface. • • • •

ƒ

Pavement Surface Base Sub-Base Dummy (extra surface, it will not use in defining).

Close Manage Surface window

ƒ ƒ ƒ

Goto Cross Section menu=> select “Extract Cross Section” Give “Begin Station and End Station” and other Options such as Stationing interval. Click “OK”

ƒ

Check “Extract” of “Orig_Surface”.

ƒ

Give “Corridor Edges”

ƒ

Marks Stations, it gives the require station for extraction. (marked all stations).

ƒ

Click “OK” it will create cross section information (cuts & fills).

ƒ

ƒ

Goto “Cross Section”=> select “Edit Cross Section Data”. It will shows the Cross section data or extracted surface. Close this window.

ƒ ƒ

Goto “typical Cross Section” => Select “Manage Typical Section”=> click “New Typical Section” Give name and Description and click “OK”

ƒ ƒ

Now goto Typical Section=> select “Construction Typical Section”. A new window will appear. Select Typical section which defined in previous step and click on “Precision Input”

ƒ

In AutoCAD a new file appear. Here you have to draw a cross section of Highway Road. It will be done by draw section on AutoCAD or by using Precision Input Commands.

ƒ ƒ

By using Precision Input Commands, 1st select a Starting point by clicking this button. Click on Intersection point of Cross lines on AutoCAD drawing, and press enter.

ƒ ƒ

Now have to construct cross section by “Precision Inputs”. The commands have to put here.

ƒ

These are the commands available to construct the typical section. Type the command on the second line and hit the Enter key. The window will ask you for the information needed based on the command. Keep using the Enter key, do not close this window. The typical section has to be created in a continuous way beginning at the crosshair point on the drawing. You have to draw only half of the section. RoadCalc can create a mirror image for the other side.

Option Absxy

Type A

Function This allows you to place the breakpoint using the values for an Absolute X and Absolute Y, referenced to the cross-hairs on the CAD screen.

dXdY

XY

dXS

XS

This allows you to place the breakpoint using the values for a Delta X and a Delta Y from the last breakpoint. This allows you to place the breakpoint using the values for a Delta X and % Slope.

dXH

XH

This allows you to place the breakpoint using the values for a Delta X and H/V Slope.

dXV

XV

This allows you to place the breakpoint using the values for a Delta X and V/H Slope.

dYS

YS

This allows you to place the breakpoint using the values for a Delta Y and % Slope.

dYH

YH

This allows you to place the breakpoint using the values for a Delta Y and H/V Slope.

dYV

YV

This allows you to place the breakpoint using the values for a Delta Y and V/H Slope.

Reset Pen

R

This starts the precision input command over. This will leave segments that have just been drawn and allow you to start from a different breakpoint.

Undo

U

This removes the previous segment added and positions the cursor on the previous breakpoint. This option is only available after a segment has been placed. It is not available in the middle of drawing a segment.

eXit

X

This stops the precision input command. Only available after a segment has been placed. Not available in the middle of drawing a segment.

PT Code

Use

-6 through -3

These codes are used to denote the four Superelevation Limit points on a divided highway typical section that follow the same rules as the 2 PT Code. They produce subsurface superelevation like the 2 PT Code.

0

This is used to denote a point on a cross-section that is not assigned to any special properties.

1

This code is used to represent the point on the typical section that is controlled by the Centerline Alignment and Centerline Profile.

3 and 4

This code is used to denote the Toe of Foreslope and Toe of Cutslope or where a ditch segment begins and ends. It is used during the Run Design command when a width controlled slope or a R.O.W. controlled slope is processed or when the Fill Ditches toggle is on.

10

This code is used to denote the outside top of the shoulder. When this code exists, it tells RoadCalc where to check for rollover, if this option has been specified by the .

1000 and 1001

These codes represent the left and right catchpoints (or daylight points) respectively.

ƒ

Example, to draw the following cross-section: ƒ 2-lane undivided highway ƒ 3.6 m lanes, 2% crown ƒ 3 m paved shoulder, 4% slope ▪ 1.5 m foreslope, H/V: 3/1 ƒ 0.5 m ditch

ƒ

ƒ

ƒ

ƒ

Start by clicking the moving crosshair to identify the starting point of the typical section on the drawing, type 1 for the PT code and hit Enter key. This code will establish the centerline of the alignment. For the next point, type dXS and hit Enter, type 3.6 and hit Enter, type -2 and hit Enter, type 6 and hit Enter. This will draw a line 3.6m wide with a -2% slope. The code will identify the end point as the end of the pavement. For the next point, type dXS and hit Enter, type 3 and hit Enter, type -4 and hit Enter, type 10 and hit Enter. This will draw a line 3.0 m wide with a -4% slope. The code will identify the end point as the end of the shoulder. For the next point, type dXH and hit Enter, type 1.5 and hit Enter, type -1/3 and hit Enter, type 3 and hit Enter. This will draw a line 1.5 m wide with a 1/3 down slope. The code will identify the end point as the left side of the ditch.

ƒ

ƒ

ƒ

ƒ

For the next point, type dXdY and hit Enter, type 0.5 and hit Enter, type 0 and hit Enter, type 4 and hit Enter. This will draw a line 0.5 m wide with no slope. The code will identify the end point as the right side of the ditch. For the next point, type dXH and hit Enter, type 1.5 and hit Enter, type 1/3 and hit Enter, type 0 and hit Enter. This will draw a line 1.5 m wide with a 1/3 down slope. For the next point, type dXdY and hit Enter, type 0.5 and hit Enter, type 0 and hit Enter, type 4 and hit Enter. This will draw a line 0.5 m wide with no slope. The code will identify the end point as the toe of the cut slope. To draw the pavement, reset the start point by typing Reset pen and hitting Enter. You can draw in AutoCAD a line that is 0.7 m in length to identify the new start point. to erase it later. Click on the moving crosshair to select the end of this new line as the depth of the pavement.

ƒ

For the next point, type dXS and hit Enter, type 3.6 and hit Enter, type -2 and hit Enter, type 0 and hit Enter. This will draw a line 3.6m wide with a -2% slope that will represent the bottom of the pavement layer.

ƒ

For the next point, type dXS and hit Enter, type 3 and hit Enter, type -4 and hit Enter, type 0 and hit Enter. This will draw a line 3.0 m wide with a -4% slope.

ƒ

For the next point, type dXdY and hit Enter, type 0 and hit Enter, type 0.7 and hit Enter, type 0 and hit Enter. This will draw a line 0.7 m vertical line. Make sure the line close the pavement area. The left side of the pavement area should be open to reflect that it continues to the right side.

ƒ

After completing these steps “Mirror the Typical Section Right to Left” by clicking this button.

ƒ

Now the Graphics of Cross section will be shown like below.

ƒ ƒ ƒ ƒ

Click “Define Typical Section” A new window will appear Select particular layer such as SubSurface and click “Define” button. After clicking “Define” button the AutoCAD drawing will appear Click within close boundary of particular layer which have to define. Such as sub-base in this e.g.

ƒ ƒ

Define all the layers of Pavement and Click “OK” to save the settings. And close Typical Cross Section window. The AutoCAD drawing will be appear as shown.

‰

Manage Condition Tables

‰

Edit Design Locations.

‰

Run Program

ƒ ƒ ƒ ƒ

Now goto Process=> select “Manage Condition Table” Click “New condition Table”. Name the condition table and click “OK” Close the Manage Condition Table

ƒ ƒ ƒ ƒ ƒ

Again goto “Process” => Select “ Edit Design Location” A new window will appear. Click “New Typical Section Location” Field Station such as 0+00, Typical Section=> “TS” ( as defined) Transition Type=> “Do not Transition to next Station” Click “OK

ƒ

Now click “New Condition Table Location”

ƒ

In “New Condition Table Location” give station 0+00

ƒ

Select Condition Table

ƒ

Click “OK”

ƒ

Close “Edit Design Locations” window.

ƒ

Now goto “Process” =>Select “Run Design”

ƒ

Mention “Starting Station”

ƒ

Use “Method”=> “Step Through All”

ƒ

Click on “Run” button.

ƒ

ƒ

After completing the process the Cross section and cuts and fills shown at different locations or Stations. By clicking “View Next/Previous Section” get different sections of different station.

ƒ

Close the windows of Cross Sections.

ƒ

This is the completion of Run design of the project.

‰

Generate Reports.

‰

Cross Section Sheets.

‰

Plan & Profile sheets.

‰

Mass Diagram Sheet.

ƒ

To generate reports of Alignment, Cross Section & Profile, goto respective menu’s and select “Generate Report” option and print it.

ƒ

Goto “Output” menu=> one can get Cross-Section sheets, Plan and Profile sheets, Mass Diagram sheets & other outputs.

ƒ

Goto “Output” menu=> Select “Cross-Section Sheets”

ƒ

Click on “New Cross Section Sheets.

ƒ

Check Starting and Ending Stations and click “OK”

ƒ

After processing number of sheets generate which shows the Cross sections.

ƒ

Close “Cross section sheets” window.

ƒ

Goto “Output” menu=> Select “Plan & Profile sheets”

ƒ

Check or modify sheet settings according to requirement.

ƒ

Click “New Plan and Profile”.

ƒ

Give Starting and Ending Stations and Click “OK”

ƒ

The number of sheets will be generated.

ƒ

Click “View Graphics” option, one can view the Plan and Profile sheets at different ranges of stations.

ƒ

Close “Plan and Profile Sheets” window.

ƒ

The Graphics will be appear as shown

ƒ

Goto “Output” menu=> Select “Mass Diagram Sheets”

ƒ

Check or Modify Sheet Settings.

ƒ

Click “New Mass Diagram Sheets”

ƒ

Give Starting and Ending Stations and Click “OK”

ƒ

After processing the Mass Diagram will be appear on AutoCAD.

ƒ ƒ

Close Mass Diagram Sheets The Mass Diagram will be appear as shown.

ƒ ƒ

Goto “Output” menu=> Select “Volumes” It will give the cuts & fills area, volume and other information's about original surface soil and Pavements.

ƒ

It is a very important option in EGPT.

ƒ

It is provided in every menu of RoadCalc i.e. Alignment, Cross Section & Profile.

ƒ

It will compare the Data and the Graphics compatibility during working, if any alter in graphics happen, one can update graphics or data.

ƒ

One can intentionally alter or set the graphics on AutoCAD and update Data on EGPT.

ƒ

Synchronize Graphics & Data Option.

ƒ

View Graphics is also an option provide in every menu, to view the particular graphics of Alignment, Cross Section, Profile etc.
