SAP Gateway: SAP Netweaver Gateway TCode Summary Posted by Paul Aschmann 26-Mar-2013 Here is a list of useful SAP Netweaver Gateway TCodes, please add a comment for any I am missing and I will gladly update. The intent of this post is to summarize the relevant TCodes for posterity and to be used as a quick lookup. Gateway Runtime
Title
T Code
Description
SP Required
Gateway Client
/IWFND/GW_CLIENT
SAP NetWeaver Gateway SP04 + is a powerful tool that enhances the existing Error Log. Also allows you to simulate service execution. (Similar to tools like RESTClient for Firefox)
Error Log
/IWFND/ERROR_LOG
The Error Log for SAP NetWeaver Gateway hub systems is a helpful addition to the existing Application Log Viewer and provides detailed context information about errors that have occurred at runtime.
Application Log
/IWFND/APPS_LOG (Gateway Hub System)
Log and Trace Files a specific viewer for application log entries created by SAP NetWeaver Gateway processes.
Application Log
/IWBEP/VIEW_LOG Log and Trace Files (Business Suite Backend) a specific viewer for application log entries created by SAP
Generated by Jive on 2015-12-09+01:00 1
SAP Gateway: SAP Netweaver Gateway T-Code Summary
NetWeaver Gateway processes. Application Log Cleanup
/IWFND/ CLEANUP_APPSLOG
Over time the application log amasses a lot of entries, which periodically need to be cleared. As default the application log should only store one entry per request. In addition, there is no need to store these entries for more than a day or a few days. Application log cleanup is a standard requirement in productive systems and helps to improve the performance of the systems in your system landscape.
Clear Cache
/IWFND/ CACHE_CLEANUP
Cleanup Gateway Metadata Cache
Disable Cache
/IWFND/MED_ACTIVATE Disable Gateway Metadata Cache
Gateway Node Activation
SICF
Includes various functions for monitoring, analysis, and troubleshooting in the ICF environment. You can also make use of the central Application Server analysis functions to identify issues such as performance problems in ICF applications.
Alert Monitoring
RZ20
SAP NetWeaver Gateway is monitored automatically within the Computing Center Management System (CCMS) in SAP CCMS Monitors for Optional Components for Information Worker. In the monitoring process, information is collected about SAP NetWeaver Gateway. Here you can see
Generated by Jive on 2015-12-09+01:00 2
SAP Gateway: SAP Netweaver Gateway T-Code Summary which applications are in use, and how often they are called up. The information is updated hourly and relates to today’s date, since on the first collection after midnight all values are initialized once they have been read out. Performance Trace
/IWFND/TRACES
The Utilities offering for SAP NetWeaver Gateway has been extended to include a Performance Trace tool. This tool enables developers, s, consultants, and end s to monitor system performance at service call level. You can trace the performance of both the SAP Business Suite backend system and the SAP NetWeaver Gateway hub system.
Title
T Code
Description
Gateway Service Builder
SEGW
A completely new design- SP04+ time transaction, which provides developers with an easy-to-use set of tools for creating services. It has been conceived for the codebased OData Channel and s developers throughout the entire development life cycle of a service.
Gateway Design
SP Required
Generated by Jive on 2015-12-09+01:00 3
SAP Gateway: SAP Netweaver Gateway T-Code Summary
Model Composition for Integration
/IWFND/ Model composition is BD_MGW_MDL_COMPOSITION provided for complex scenarios for the integration topics, such as SAP Business Warehouse, GenIL and SPI. It allows mashing up multiple services within IW-BEP.
Service Validation
/IWFND/SRV_VALIDATE
SAP NetWeaver Gateway Service Validation Tool validates the runtime for all the SAP NetWeaver Gateway services to ensure that all the services work fine. Service Validation tool runs without intervention and performs the runtime validation on a single service document.
/Test Backend System
SM59
Your backend system has to be ed as an SAP system alias in the SAP NetWeaver Gateway Implementation Guide (IMG) on your SAP NetWeaver Gateway system. In addition, an RFC destination has to be defined in transaction SM59.
Create a Service
SE80
Design time ABAP Workbench
a Service
/IWFND/REG_SERVICE
Replaced with SEGW
Maintain a Service
/IWFND/ MAINT_SERVICE
Replaced with SEGW
Activate a Service
/IWFND/IWF_ACTIVATE
Activate or Deactivate a service
MOC
/IWFND/ MOC_PARALLEL
Parallelize Multi-Origin Composition
WebGUI Workflow
/IWFND/WF_WEBGUI
WebGUI For Executing Workflow Item
Generated by Jive on 2015-12-09+01:00 4
SAP Gateway: SAP Netweaver Gateway T-Code Summary
Configure Message based Authentication
/IWFND/WSS_SETUP
Configure Web Service Message-Based Authentication
GenIL Generator
/IWGIL/ GENIL_SRV_GEN
Gateway Service Generator for GenIL
38525 Views Tags: sap, mobility, netweaver, rest, soa, sap_netweaver_platform, sap_netweaver_gateway, service-oriented_architecture, developer, gateway, odata, netweaver_gateway, sap_netweaver, sap_mobile_developer_center, sap_netweaver_mobile
Andre Fischer in response to Pavan Golesar on page 5 10-Jul-2015 10:23 Hi Pavan, see the answer from Atanu Mallik in the following thread Gateway OData Metadata Cache Best Regards, Andre Pavan Golesar 10-Jul-2015 06:32 Hi Paul, As said earlier, your blog is quite helpful, I Have a query, Exactly when do we need need /IWFND/CACHE_CLEANUP and /IWBEP/ CACHE_CLEANUP ??? thanks, Pavan Golesar Paul Aschmann in response to Anamika Blake on page 5 10-Jul-2015 04:00 Hi Anamika, I believe you can find them in SMGW. See here: Gateway Security Files secinfo and reginfo - Security Settings in the Gateway - SAP Library Cheers, Paul Anamika Blake 09-Jul-2015 09:09 Hey Paul, Thanks a lot for all these tcodes. Please help me with another tcode please...from where will I be able to check secinfo and reginfo for RFC Gateway Access Control? Pavan Golesar
Generated by Jive on 2015-12-09+01:00 5
SAP Gateway: SAP Netweaver Gateway T-Code Summary
20-Jun-2015 13:17 Cool.. Thanks, Regards, Pavan Andre Fischer in response to Facundo Ferrer on page 6 30-Jan-2015 17:15 Hi Facundo, since SAP Gateway is using the stateless OData protocol with shortlived sessions there shouldn't be too many active sessions in a SAP Gateway server
.
Or are you looking for some reporting telling you how many calls have been made to a certain service in the last hour, today, ... ? Best Regards, Andre Facundo Ferrer 29-Jan-2015 16:02 Hi Everyone! Great blog Paul. Customers are wondering about monitoring current active sessions on Netweaver Gateway. Is there any way you know to achieve this? Christian Weiß 13-Jan-2015 15:50 Hi Paul, nice summary. Thanks Christian Prasenjit Mishra 10-Feb-2014 11:00 Hi Paul, Nice to see this blog. Could you please send some latest updates about sap netweaver gateway? Thanks, Prasenjit Paul Aschmann in response to Wolfgang Dr. Röckelein on page 7 05-Dec-2013 19:03 Hi Wolfgang - you are correct. I have updated the details above to show his. Thanks!
Generated by Jive on 2015-12-09+01:00 6
SAP Gateway: SAP Netweaver Gateway T-Code Summary
Tahir Öz 02-Dec-2013 19:09 Thanks Paul, realy needed. Tahir Wolfgang Dr. Röckelein 21-Nov-2013 01:16 Are you sure about /IWFND/CLEANUP_APPSLOG and /IWFND/BD_MGW_MDL_COMPOSITION? I think this names are even longer than the allowed transaction name length.... Aliaksandr Shchurko 19-Jun-2013 14:56 Thanks! Paul Aschmann in response to Ravi Sharma on page 7 08-May-2013 15:48 Thanks Ravi - added. Ravi Sharma 07-May-2013 17:27 Few New ones : Transaction code
/IWFND/MOC_PARALLEL Parallelize Multi-Origin Composition
Transaction code
/IWFND/WF_WEBGUI WebGUI For Executing Workflow Item
Transaction Code
/IWFND/WSS_SETUP Configure WS Message-Based
Regards, Ravi Sharma Syam Babu 27-Mar-2013 08:29 Hi Paul, One transaction is missing. Activate or Deactivate SAP Netweaver Gateway --- /IWFND/IWF_ACTIVATE
Thanks,
Generated by Jive on 2015-12-09+01:00 7
SAP Gateway: SAP Netweaver Gateway T-Code Summary
Syam Paul Aschmann in response to Syam Babu on page 8 26-Mar-2013 20:22 Thanks Syam Syam Babu 26-Mar-2013 18:58 Hi Paul, Nice Blog. Thanks, Syam
Generated by Jive on 2015-12-09+01:00 8
Title
T Code
Description
SP Required
Gateway Client
/IWFND/GW_CLIENT
SAP NetWeaver Gateway SP04 + is a powerful tool that enhances the existing Error Log. Also allows you to simulate service execution. (Similar to tools like RESTClient for Firefox)
Error Log
/IWFND/ERROR_LOG
The Error Log for SAP NetWeaver Gateway hub systems is a helpful addition to the existing Application Log Viewer and provides detailed context information about errors that have occurred at runtime.
Application Log
/IWFND/APPS_LOG (Gateway Hub System)
Log and Trace Files a specific viewer for application log entries created by SAP NetWeaver Gateway processes.
Application Log
/IWBEP/VIEW_LOG Log and Trace Files (Business Suite Backend) a specific viewer for application log entries created by SAP
Generated by Jive on 2015-12-09+01:00 1
SAP Gateway: SAP Netweaver Gateway T-Code Summary
NetWeaver Gateway processes. Application Log Cleanup
/IWFND/ CLEANUP_APPSLOG
Over time the application log amasses a lot of entries, which periodically need to be cleared. As default the application log should only store one entry per request. In addition, there is no need to store these entries for more than a day or a few days. Application log cleanup is a standard requirement in productive systems and helps to improve the performance of the systems in your system landscape.
Clear Cache
/IWFND/ CACHE_CLEANUP
Cleanup Gateway Metadata Cache
Disable Cache
/IWFND/MED_ACTIVATE Disable Gateway Metadata Cache
Gateway Node Activation
SICF
Includes various functions for monitoring, analysis, and troubleshooting in the ICF environment. You can also make use of the central Application Server analysis functions to identify issues such as performance problems in ICF applications.
Alert Monitoring
RZ20
SAP NetWeaver Gateway is monitored automatically within the Computing Center Management System (CCMS) in SAP CCMS Monitors for Optional Components for Information Worker. In the monitoring process, information is collected about SAP NetWeaver Gateway. Here you can see
Generated by Jive on 2015-12-09+01:00 2
SAP Gateway: SAP Netweaver Gateway T-Code Summary which applications are in use, and how often they are called up. The information is updated hourly and relates to today’s date, since on the first collection after midnight all values are initialized once they have been read out. Performance Trace
/IWFND/TRACES
The Utilities offering for SAP NetWeaver Gateway has been extended to include a Performance Trace tool. This tool enables developers, s, consultants, and end s to monitor system performance at service call level. You can trace the performance of both the SAP Business Suite backend system and the SAP NetWeaver Gateway hub system.
Title
T Code
Description
Gateway Service Builder
SEGW
A completely new design- SP04+ time transaction, which provides developers with an easy-to-use set of tools for creating services. It has been conceived for the codebased OData Channel and s developers throughout the entire development life cycle of a service.
Gateway Design
SP Required
Generated by Jive on 2015-12-09+01:00 3
SAP Gateway: SAP Netweaver Gateway T-Code Summary
Model Composition for Integration
/IWFND/ Model composition is BD_MGW_MDL_COMPOSITION provided for complex scenarios for the integration topics, such as SAP Business Warehouse, GenIL and SPI. It allows mashing up multiple services within IW-BEP.
Service Validation
/IWFND/SRV_VALIDATE
SAP NetWeaver Gateway Service Validation Tool validates the runtime for all the SAP NetWeaver Gateway services to ensure that all the services work fine. Service Validation tool runs without intervention and performs the runtime validation on a single service document.
/Test Backend System
SM59
Your backend system has to be ed as an SAP system alias in the SAP NetWeaver Gateway Implementation Guide (IMG) on your SAP NetWeaver Gateway system. In addition, an RFC destination has to be defined in transaction SM59.
Create a Service
SE80
Design time ABAP Workbench
a Service
/IWFND/REG_SERVICE
Replaced with SEGW
Maintain a Service
/IWFND/ MAINT_SERVICE
Replaced with SEGW
Activate a Service
/IWFND/IWF_ACTIVATE
Activate or Deactivate a service
MOC
/IWFND/ MOC_PARALLEL
Parallelize Multi-Origin Composition
WebGUI Workflow
/IWFND/WF_WEBGUI
WebGUI For Executing Workflow Item
Generated by Jive on 2015-12-09+01:00 4
SAP Gateway: SAP Netweaver Gateway T-Code Summary
Configure Message based Authentication
/IWFND/WSS_SETUP
Configure Web Service Message-Based Authentication
GenIL Generator
/IWGIL/ GENIL_SRV_GEN
Gateway Service Generator for GenIL
38525 Views Tags: sap, mobility, netweaver, rest, soa, sap_netweaver_platform, sap_netweaver_gateway, service-oriented_architecture, developer, gateway, odata, netweaver_gateway, sap_netweaver, sap_mobile_developer_center, sap_netweaver_mobile
Andre Fischer in response to Pavan Golesar on page 5 10-Jul-2015 10:23 Hi Pavan, see the answer from Atanu Mallik in the following thread Gateway OData Metadata Cache Best Regards, Andre Pavan Golesar 10-Jul-2015 06:32 Hi Paul, As said earlier, your blog is quite helpful, I Have a query, Exactly when do we need need /IWFND/CACHE_CLEANUP and /IWBEP/ CACHE_CLEANUP ??? thanks, Pavan Golesar Paul Aschmann in response to Anamika Blake on page 5 10-Jul-2015 04:00 Hi Anamika, I believe you can find them in SMGW. See here: Gateway Security Files secinfo and reginfo - Security Settings in the Gateway - SAP Library Cheers, Paul Anamika Blake 09-Jul-2015 09:09 Hey Paul, Thanks a lot for all these tcodes. Please help me with another tcode please...from where will I be able to check secinfo and reginfo for RFC Gateway Access Control? Pavan Golesar
Generated by Jive on 2015-12-09+01:00 5
SAP Gateway: SAP Netweaver Gateway T-Code Summary
20-Jun-2015 13:17 Cool.. Thanks, Regards, Pavan Andre Fischer in response to Facundo Ferrer on page 6 30-Jan-2015 17:15 Hi Facundo, since SAP Gateway is using the stateless OData protocol with shortlived sessions there shouldn't be too many active sessions in a SAP Gateway server
.
Or are you looking for some reporting telling you how many calls have been made to a certain service in the last hour, today, ... ? Best Regards, Andre Facundo Ferrer 29-Jan-2015 16:02 Hi Everyone! Great blog Paul. Customers are wondering about monitoring current active sessions on Netweaver Gateway. Is there any way you know to achieve this? Christian Weiß 13-Jan-2015 15:50 Hi Paul, nice summary. Thanks Christian Prasenjit Mishra 10-Feb-2014 11:00 Hi Paul, Nice to see this blog. Could you please send some latest updates about sap netweaver gateway? Thanks, Prasenjit Paul Aschmann in response to Wolfgang Dr. Röckelein on page 7 05-Dec-2013 19:03 Hi Wolfgang - you are correct. I have updated the details above to show his. Thanks!
Generated by Jive on 2015-12-09+01:00 6
SAP Gateway: SAP Netweaver Gateway T-Code Summary
Tahir Öz 02-Dec-2013 19:09 Thanks Paul, realy needed. Tahir Wolfgang Dr. Röckelein 21-Nov-2013 01:16 Are you sure about /IWFND/CLEANUP_APPSLOG and /IWFND/BD_MGW_MDL_COMPOSITION? I think this names are even longer than the allowed transaction name length.... Aliaksandr Shchurko 19-Jun-2013 14:56 Thanks! Paul Aschmann in response to Ravi Sharma on page 7 08-May-2013 15:48 Thanks Ravi - added. Ravi Sharma 07-May-2013 17:27 Few New ones : Transaction code
/IWFND/MOC_PARALLEL Parallelize Multi-Origin Composition
Transaction code
/IWFND/WF_WEBGUI WebGUI For Executing Workflow Item
Transaction Code
/IWFND/WSS_SETUP Configure WS Message-Based
Regards, Ravi Sharma Syam Babu 27-Mar-2013 08:29 Hi Paul, One transaction is missing. Activate or Deactivate SAP Netweaver Gateway --- /IWFND/IWF_ACTIVATE
Thanks,
Generated by Jive on 2015-12-09+01:00 7
SAP Gateway: SAP Netweaver Gateway T-Code Summary
Syam Paul Aschmann in response to Syam Babu on page 8 26-Mar-2013 20:22 Thanks Syam Syam Babu 26-Mar-2013 18:58 Hi Paul, Nice Blog. Thanks, Syam
Generated by Jive on 2015-12-09+01:00 8
Related Documents 3m3m1z
Netweaver Gateway T Code Summary 493p4l
August 2022 0

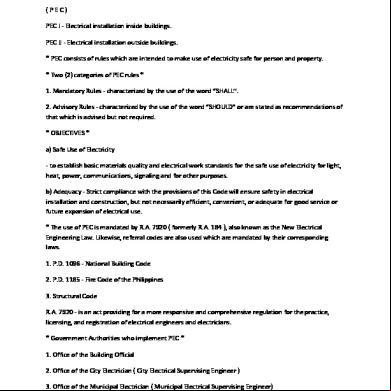

Philippine Electrical Code Summary l35d
